SpaceRail Bike Storage System / Rack Mount

From:  £349.99
Purpose-built for commercial use, Rack Mount integrates SpaceRail with existing warehouse racking systems. It’s the go-to for bike rental fleets and busy workshops, offering easy access, scalable capacity and no-fix installation. Reconfigure your layout as needed—this system moves with your busin...Read more
starstarstarstarstar
3 Reviews

How many Bikes?
Multiples of 4 are the best value
1
+ more
1
+ more
Storage for: 1 hook, requires 1 rail
(Rails included. Total Length: 114cm / 45")
Total cost from: £349.99

Other mount types icon Mount type not suitable? Take a look at our other rails:

Need to store kids’ bikes or wheels?
Double Hook
Hang extra wheels or kids bikes in pairs. Made in Wales from aerospace grade aluminium to last a ...
£29.99
Minus
0
Plus
Got an e-bike?
Charge Station
Charge Station, our wall mounted, e-bike charger holder, makes light work of charging e-bikes on ...
£34.99
Minus
0
Plus
Got a fat tyre or 65mm+ carbon wheels?
Fat Tyre Adapter
Our Fat Tyre Adapter is designed to make hanging your fat bike a breeze.  No need to change hooks...
£34.99
Minus
0
Plus

In stock, ready to ship

5 year warranty
Holds every bike
Made in the UK

Purpose-built for commercial use, Rack Mount integrates SpaceRail with existing warehouse racking systems. It’s the go-to for bike rental fleets and busy workshops, offering easy access, scalable capacity and no-fix installation. Reconfigure your layout as needed—this system moves with your business.

We ship worldwide, please add your order to basket and head to checkout for a shipping cost. Free shipping is available on orders above £50 to the UK. £4.99 shipping on orders under £50. Please see here for our full Shipping Policy.

We have partnered with FedEx and DHL to make the worldwide shipping and import process very simple for the customer. Currently we have a 100% success rate with on time worldwide delivery and seamless customs clearance, so we are confident you will have a simple and easy purchasing experience. Simply add your selections to your Cart and go to checkout to see live shipping costs to your area.

You have the option at checkout to include or exclude duties and taxes in the price you pay to us. Please see here for our full Shipping Policy.

Our SpaceRail products are protected with a 5 year unlimited use warranty policy, even in commercial and workshop settings. Please see our Warranty Policy for full details.

All other products come with a 2-year warranty.

All our products are easy to service, to ensure they have a long life in service. If parts are required outside of the warranty period, they are available to buy in our Spare Parts Collection.

Add to Cart - £349.99
Play Video Icon Pause Video Icon
Spacerail features

Features

  • Rack Mount works with a wide range of pallet racking systems
  • Rack Mount is designed to fit most beam widths of 40mm / 1.5" & 50mm / 2" - beam heights from 50mm / 2" to 165mm / 6.5"
  • Rack Mount is an easy to install, convenient no-fix, movable and removable bike storages system
  • Save up to 50% space storing bikes using Rack Mount and SpaceRail
  • SpaceRail Rack Mount kits are designed for use in commercial and warehouse settings
  • Each rail section can hold 100kg / 220lbs
  • Universal hook stores every bike up to 30kg / 65lbs (3” tyre max) including e-bikes, with or without mudguards
  • FA[S]T adapter available for tyres wider than 3” and 60mm+ carbon wheels (purchased separately)
  • SpaceRail Rack Mount Bike Storage is infinitely extendable to store every bike in your fleet
  • Improves security - compacting bikes makes them easier to secure
  • 5 year commercial no-quibble warranty


Features

  • Rack Mount works with a wide range of pallet racking systems
  • Rack Mount is designed to fit most beam widths of 40mm / 1.5" & 50mm / 2" - beam heights from 50mm / 2" to 165mm / 6.5"
  • Rack Mount is an easy to install, convenient no-fix, movable and removable bike storages system
  • Save up to 50% space storing bikes using Rack Mount and SpaceRail
  • SpaceRail Rack Mount kits are designed for use in commercial and warehouse settings
  • Each rail section can hold 100kg / 220lbs
  • Universal hook stores every bike up to 30kg / 65lbs (3” tyre max) including e-bikes, with or without mudguards
  • FA[S]T adapter available for tyres wider than 3” and 60mm+ carbon wheels (purchased separately)
  • SpaceRail Rack Mount Bike Storage is infinitely extendable to store every bike in your fleet
  • Improves security - compacting bikes makes them easier to secure
  • 5 year commercial no-quibble warranty

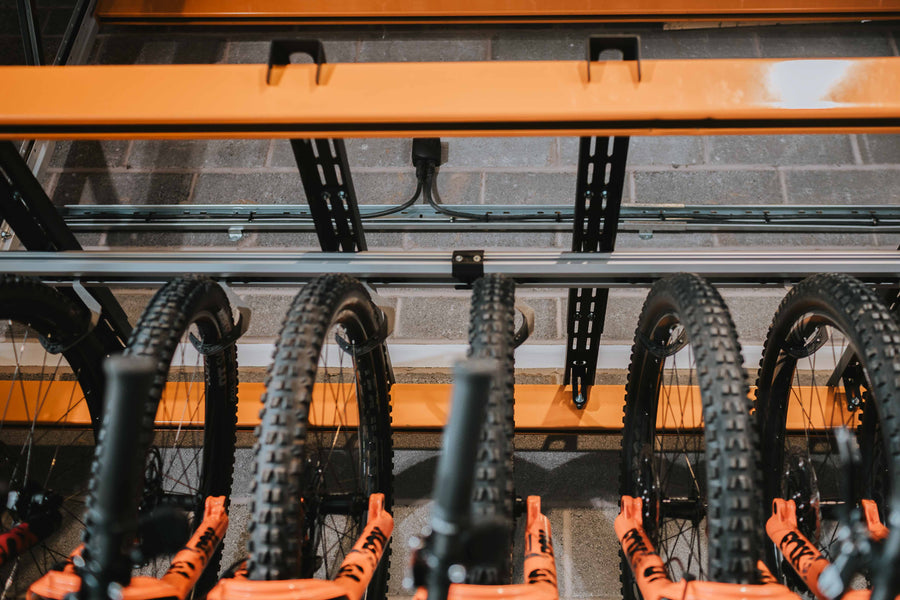

Tech Spec

  • Rack Mount works with step type beams and box beams. We do not recommend fitting to Z-section or L-section beams
  • Rack Mount is fully adjustable to suit most types of racking: Min depth - 900mm / 35.4".max depth - 1250mm / 49.2"
  • Designed to fit beams with a depth of 50mm / 2" to 165mm / 6.5" and width of between 40mm / 1.6" to 50mm / 2"
  • Any height of racking can be used, as long as it can be adjusted to fit the length of the longest bike being stored. We recommend a height of 2,500mm 100" to allow for most bike lengths
  • Ensure you have sufficient height to hang your bikes with the wheels off the floor. The rail and trolley require 205mm / 8.1" of height allowance from the tope of the rail to the inside of the bike's wheel rim where it touches the hook
  • The adjustable rubber pressure pad can be positioned 10mm / 0.4" to 60mm / 2.4" from the top surfaces of the beam
  • We recommend using two beams at the top and one at the back unless access from the rear is required
  • Rack Mount is designed to work with a wide range of commercial pallet racking systems. It is the user's responsibility to ensure that the structure they are using is capable of supporting the load
  • Rack Mount is made from powder coated mild steel

Tech Spec

  • Rack Mount works with step type beams and box beams. We do not recommend fitting to Z-section or L-section beams
  • Rack Mount is fully adjustable to suit most types of racking: Min depth - 900mm / 35.4".max depth - 1250mm / 49.2"
  • Designed to fit beams with a depth of 50mm / 2" to 165mm / 6.5" and width of between 40mm / 1.6" to 50mm / 2"
  • Any height of racking can be used, as long as it can be adjusted to fit the length of the longest bike being stored. We recommend a height of 2,500mm 100" to allow for most bike lengths
  • Ensure you have sufficient height to hang your bikes with the wheels off the floor. The rail and trolley require 205mm / 8.1" of height allowance from the tope of the rail to the inside of the bike's wheel rim where it touches the hook
  • The adjustable rubber pressure pad can be positioned 10mm / 0.4" to 60mm / 2.4" from the top surfaces of the beam
  • We recommend using two beams at the top and one at the back unless access from the rear is required
  • Rack Mount is designed to work with a wide range of commercial pallet racking systems. It is the user's responsibility to ensure that the structure they are using is capable of supporting the load
  • Rack Mount is made from powder coated mild steel

General FAQ
Our returns policy allows for returns within 30 days of delivery. You must contact us before returning the product. Returns within the UK are free. Full details of our returns policy and how to return an item are shown here: https://www.stashedproducts.co.uk/policies/refund-policy
We ship worldwide, please add your order to basket and head to checkout for a shipping cost. Free shipping is available on orders above £50 to the UK. £4.99 shipping on orders under £50. Please see here for our full Shipping Policy: https://www.stashedproducts.co.uk/policies/shipping-policy
Yes. We’re confident in our build quality and our products are protected by our ‘no quibble’ 5 year warranty. (Excludes soft products)
SpaceRail FAQ
For ceilings above 2,400mm / 8ft, we recommend a wall mounted system so it can be positioned at a suitable height for use. For ceilings below 2,400mm / 8ft we recommend a ceiling mounted system if it is possible to be fitted to a suitable structure. Angled brackets are also available for sloping ceilings. FreeStand provides versatile fix-free bike storage that does not need to be fitted to existing structures. Visit our Instructions page for more information.
We recommend a general installation height between 2,100mm-2,400mm for most bike types.
Yes. Our SpaceRail kits contain everything you need, including Hooks, Rails, Joiners, End Caps and Mounting hardware. Our systems are designed to be easily installed with a basic toolkit and DIY skills.
Each hook can hold up to 30kg / 65lbs. Each standard section of rail can hold up to 100kg / 220lbs. SpaceRail is designed to safely store most e-bikes. FreeStand 8 bike uses a heavy duty rail rated to 150kg / 331lbs.
We recommend placing our SpaceRail bike storage system around 600-700mm away from the wall for optimal use. Visit the link for more information & videos on installation & fitting requirements. https://www.stashedproducts.com/pages/instructions
Standard rails are 1100mm / 44” long and are designed to store up to four bikes. If all four bikes are large enduro or downhill mountain bikes, you may need an additional section of rail to enjoy optimum performance. We offer a free custom rail cutting service if needed.
The maximum wheel depth including rim and tyre is 95mm.
No. SpaceRail is designed for use with carbon rims and includes a polymer hook cover to ensure no damage occurs.
Yes. SpaceRail will not damage your bike if hung on it. The loads placed through your bike when hung on SpaceRail are far lower than the loads during use when being ridden.
Yes. Providing your suspension forks and hydraulic brakes are in good working condition, then no issues will occur. These are sealed systems so no oil will escape. Before use, always check the function of your brakes and suspension when you remove them from SpaceRail.
